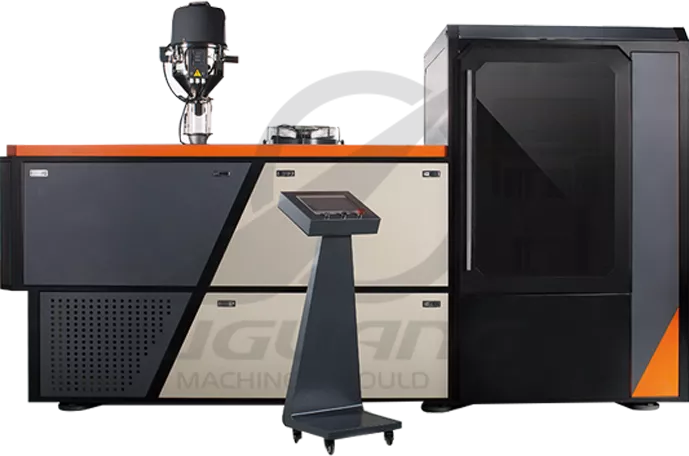

Cap Moulding Machine
——

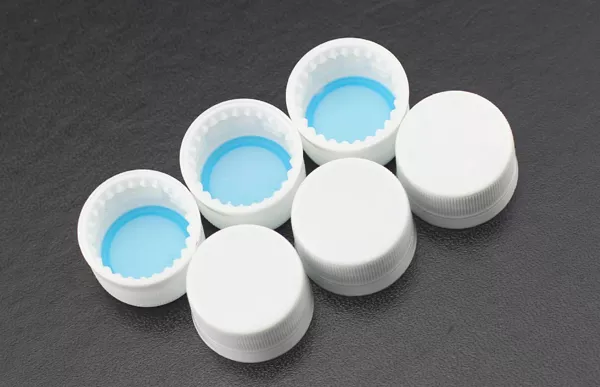

This machine is used to produce mineral water bottle caps, soda bottle caps, juice beverage bottle caps, medicine bottle caps, cosmetic bottle caps, motor oil bottle caps, etc.
Features
—————

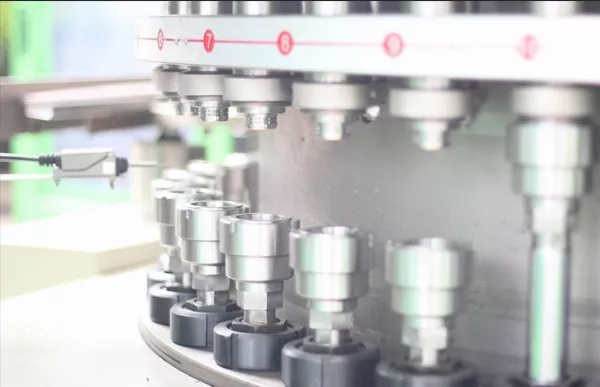

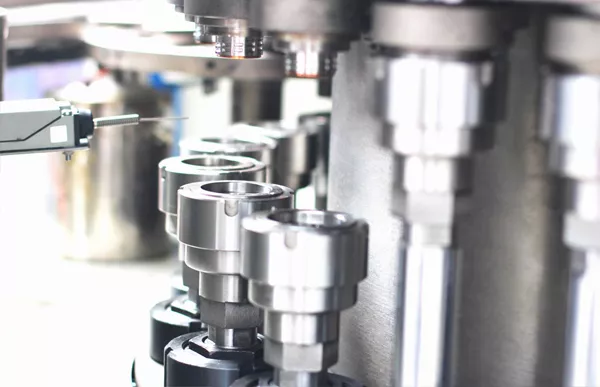

The bottle cap molding process is to pour the granular plastic into the hopper and melt it at high temperature. After extruding from the discharge port through the extruder, the blank is cut from the cutting disc and distributed to each mold cavity. Spring extrusion or hydraulic compression into various soda bottle caps or mineral water bottle caps.
The bottle caps produced by this machine have no injection point, no runner waste, high output, fast speed, good quality and beautiful appearance of the bottle caps.
This machine is equipped with a complete set of computer operating system and extruder, the speed matching system and hydraulic system of the molding machine, and the temperature of the mold and material temperature, speed and pressure can be adjusted to the best state, thus ensuring the stable operation of the equipment sex and durability.
This machine is easy to operate, saves water, electricity, raw materials and labor. Compared with the same energy consumption injection molding machine cover, the output can be increased by three times, thus greatly reducing the cost of cover making.
Technical Parameter
—————
Model
JG-30BY (24T)

Quantity of mold head

/24

Capacity

pcs/hr12000-18000

Cap diameter

mm22-45

Cap height

mm10-25

Power of heating ring of the extruder

KW11

Power of electromotor of the extruder

KW7.5

Power of electromotor of the molding press machine

KW2.2

Power of hydraulic pressure

KW11

Power of cooling system

KW3

Air consumption

kgs, m³/hr6, 0.5

Power, Voltage

V,0Hz380, 50(3 phase electricity)

Weight

kg3800
Sizemm3500×1400×1900


* 以上数据可能不断研发改进,仅供参考,若有变更,恕不另行通知。
